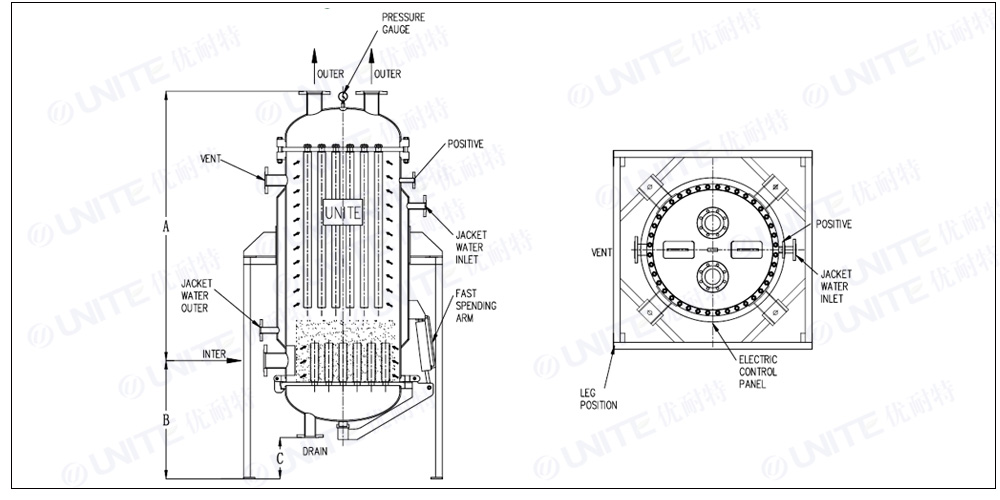

The u-fc-g microporous filter is suitable for the solid-liquid separation conditions with low liquid content, high solid concentration, separate recovery of solid and liquid, and requirements for dry humidity of filter residue. It can realize the quick drying of medium, closed filtration, no odor spillover and safe production. The filter element is first selected for diversity, which can achieve high temperature and corrosion resistance, and can be regenerated by gas back blowing and used repeatedly.　 Outline drawing of Jiangsu union microporous filter:   Features of u-fc-g type products: 1. It can realize the common recovery of filtrate and liquid residue; 2. It can discharge dry slag; 3. The slag removal system is opened by hydraulic cylinder to facilitate unloading and operation; 4. The selection of filter elements is diversified, which can realize the reuse of filter elements; 5. Design of quick drying system, backwashing and regeneration with clean air source; 6. Fully automatic operation of the whole equipment can be realized; 7. Stable performance, convenient operation and long service life; 8. It can greatly reduce the operation cost and labor cost.

型号规格	FC-G-1	FC-G-2	FC-G-3	FC-G-5	FC-G-10	FC-G-20	FC-G-30	FC-G-40	FC-G-60
过滤面积	1	2	3	5	10	20	30	40	60
处理能力(T/H)	根据具体物料的实验数据确定
工作压力(MPa)	≤0.2
工作温度(℃)	≤110
设备直径(mm)	Φ300	Φ300	Φ400	Φ500	Φ800	Φ1000	Φ1000	Φ1200	Φ1600
			Φ300			Φ900			Φ1400
设备高度(mm)	1530	1730	1828	2567	2880	3530	3493	4107	4030
进/出口口径(mm)	DN40 /DN40	DN40 /DN40	DN40 /DN40	DN40 /DN50	DN50 /DN50	DN50 /DN50	DN65 /DN65	DN65 /DN65	DN65 /DN65
排渣口(mm)	Φ200	Φ200	Φ300	Φ300	Φ400	Φ400	Φ500	Φ500	Φ500
	Φ50	Φ50	Φ200	Φ200	Φ300	Φ300	Φ380	Φ380	Φ380
			Φ80	Φ80	Φ200	Φ200	Φ200	Φ200	Φ200
					Φ100	Φ100	Φ100	Φ100	Φ100
滤管间距	43	43	43	50	50	67	55	50	50
设备容积(m³)	0.035	0.05	0.07	0.2	0.62	0.8	1.2	2.1	2.3
最大容渣量(m³)	0.005	0.01	0.015	0.025	0.05	0.1	0.15	0.2	0.3
设备重量(KG)	240	250	260	440	810	1260	1480	2700	3170
