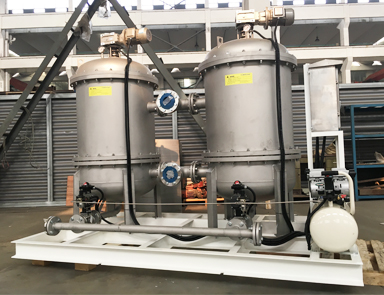

The u-zc-d series multi-functional self-cleaning filter is developed on the basis of the u-zc full-automatic filter. It is a multi-functional combined design. The filter cleaning component adopts the back washing component and the scraper component to clean the impurities adsorbed on the filter element surface.
The filter is suitable for complex working conditions with large flow rate and diversified impurity composition. It can effectively filter and drain heavy particles, suspended solids, floating substances and other impurities in industrial water through a single equipment. The maximum treatment capacity can reach 9000m3 / h
working principle:
Performance features:
1. The filter shell can be made of carbon steel and stainless steel, with carbon steel lined with rubber and PTFE;
2. The filter core can be made of stainless steel, duplex steel and Hastelloy;
3. The filtering accuracy is suitable for 25 μ m to 500 μ m;
4. The filter can be used in explosive condition and meet the requirements of BT4 \ cT4.
Application fields:



型号 | ZC-S3-T2M | ZC-S3-T2 | ZC-S3-T3 | ZC-S3-T4 | ZC-S3-T5 | ZC-S3-T6M | ZC-S3-T6 | ZC-S3-T7 | ZC-S3-T8 | ZC-S3-T9 | ZC-S3-T10 |
进出口径 | DN80 | DN100 | DN150 | DN200 | DN250 | DN300 | DN350 | DN400 | DN500 | DN600 | DN650 |
3” | 4” | 6” | 8” | 10” | 12” | 14” | 16” | 20” | 24” | 26” | |
A(mm) | 80 | 80 | 90 | 90 | 100 | 100 | 100 | 120 | 130 | 145 | 145 |
B(mm) | 480 | 715 | 910 | 1050 | 1270 | 1390 | 1640 | 2005 | 2350 | 2715 | 3095 |
C(mm) | 355 | 450 | 540 | 600 | 730 | 750 | 860 | 1025 | 1130 | 1310 | 1490 |
L1(mm) | 220 | 240 | 280 | 320 | 350 | 450 | 460 | 560 | 700 | 800 | 850 |
L2(mm) | 200 | 230 | 260 | 280 | 310 | 330 | 380 | 450 | 550 | 650 | 750 |
