The u-zc-s brush type self-cleaning filter series is suitable for severe working conditions. For different use requirements, it can be equipped with 25-3500 μ M filter screen, 2 "- 36" caliber. The self-cleaning process of the filter is started by monitoring the differential pressure at the inlet and outlet of the filter at one time. Generally, the preset value of the differential pressure switch is 0.5bar (7psi). The filter has the advantages of continuous filtration, simple maintenance and safe operation, so it is widely used in many industries. working principle: The fluid containing impurities enters the filter chamber of the automatic filter, where the flow rate of the fluid in the pipeline decreases. The fluid passes through the sealed filter screen element in radial form, and the sundries are intercepted on the screen surface, and the clean fluid continuously flows out through the outlet. When the impurities intercepted on the surface of the screen are accumulated continuously, which reduces the effective filtering area of the screen to form a differential pressure and reaches the set differential pressure value, the motor starts to drive the cleaning component to clean the screen 360 degrees without dead angle, and the automatic blowdown valve opens to discharge the impurities. When the differential pressure returns to the initial value, the automatic blowdown valve closes and the motor stops working. The automatic filter system can automatically intermittent or continuous blowdown two modes can be selected. 1. The diaphragm drain valve is open and connected with the atmosphere. 2. The motor drives the steel brush in the screen to rotate. 3. The diaphragm drain valve is closed. 4. When the differential pressure switch detects that the differential pressure inside and outside the filter screen reaches the preset value (0.5bar). Application fields: Filtration mode: filtration, separation, screening, mechanical, manual, brush, scraper, intelligent automatic, continuous online cleaning. Filtering purpose: filter large particle impurities, clean required liquid, collect required solid particles, protect key equipment ○ application industry: water treatment, pharmaceutical technology, food and beverage, petrochemical industry, power, electronics, printing and dyeing, construction, smelting, papermaking, coal mine, municipal administration, etc. Suitable for liquids: water, penicillin, protein, polymer, vitamin, citric acid, fermented liquid, chitosan, agarose (gel), silicone solution, wax, kerosene, monomer, soap, sorbitol, steroid, wet auxiliary, adhesive, pigment, ink, slip agent, paint, resin, rubber, ethanol, chocolate, milk, edible oil, high temperature oil, fruit juice. , coolant, diesel, etc

Table of inlet and outlet dimensions of brush type self-cleaning filter:



参数/型号	CX-02	CX-03	CX-04	CX-05	CX-06	CX-08	CX-10	CX-12	CX-14	CX-16	CX-18	CX-20
工作电压	3相380v 50Hz	3相380v 50Hz	3相380v 50Hz	3相380v 50Hz	3相380v 50Hz	3相380v 50Hz	3相380v 50Hz	3相380v 50Hz	3相380v 50Hz	3相380v 50Hz	3相380v 50Hz	3相380v 50Hz
功率(kw)	0.37	0.37	0.37	0.37	0.55	0.55	0.55	0.75	0.75	0.75	0.75	2.20
流量(m³/h)	20	45	65	120	165	265	330	410	590	1050	1560	2150
过滤面积(cm²)	2275	2756	3227	3586	5865	6352	9956	10955	14395	16521	21552	33250
进出口径(mm)	DN50	DN80	DN100	DN125	DN150	DN200	DN250	DN300	DN350	DN400	DN450	DN500
排污口径(mm)	DN25	DN25	DN25	DN25	DN50	DN50	DN50	DN80	DN80	DN80	DN80	DN80
排污时间(s)	10~60	10~60	10~60	10~60	10~60	10~60	10~60	10~60	10~60	10~60	10~60	10~60
工作压力(Mpa)	0.1~1.6	0.1~1.6	0.1~1.6	0.1~1.6	0.1~1.6	0.1~1.6	0.1~1.6	0.1~1.6	0.1~1.6	0.1~1.6	0.1~1.6	0.1~1.6
H(mm)	1350	1500	1600	1650	1920	1970	2180	2490	2610	2720	2830	2920
H1(mm)	880	950	1100	1100	1350	1350	1450	1650	1700	1750	1850	1900
H2(mm)	485	650	650	650	800	800	850	1000	1050	1050	1100	1200
H3(mm)	150	150	150	150	200	200	200	250	250	250	250	250
L1(mm)	520	537	625	625	750	750	830	930	1020	1220	1320	1420
L2(mm)	150	150	150	150	200	200	200	250	250	250	250	250

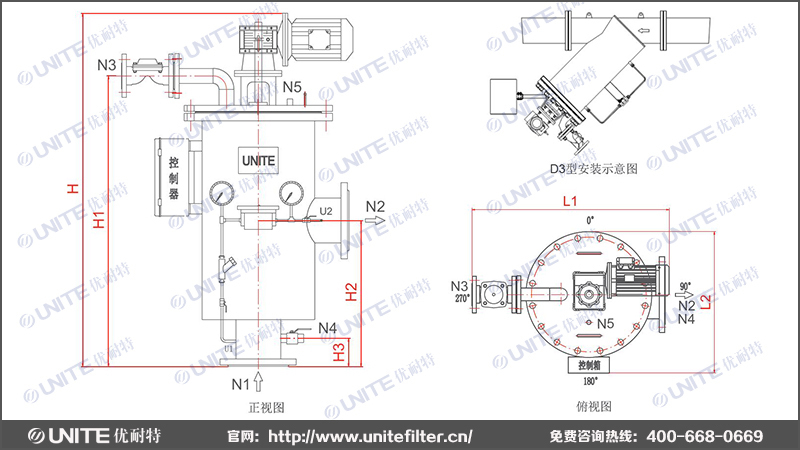

Size table of bottom inlet and side outlet of brush type self-cleaning filter:

Technical parameters: 1. Operating flow: 20-5000m3 / h 2. For details, please contact the manufacturer. Different water quality & accuracy and corresponding flow are different 3. Minimum working pressure: 2kg 4. If the working pressure is too low, the booster pump can be set at the drain outlet 5. Maximum working pressure: 10kg; 150psi 6. According to the user's requirements, the high-pressure type can be specially made. Contact the manufacturer for details 7. Filtering area: 3000C ㎡ - 20000c ㎡ 8. Inlet / outlet diameter: 50,80100150200250300350400500600800mm; 9. Maximum working temperature: 70 ° C; 10. Please specify if it is higher than this temperature
